KuWfi Outdoor Wifi Bridge Router 1KM 300Mbps Wireless Router Outside&Indoor CPE Router Kit Wireless Bridge Wifi Repeater
KuWfi Outdoor Wifi Bridge Router 1KM 300Mbps Wireless Router Outside&Indoor CPE Router Kit Wireless Bridge Wifi Repeater
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
5G Wi-Fi Transmission Rate: None
Antenna Type: Internal
Application: Outdoor
Application 1: for ip camera
Application 2: Security
Application 3: Elevator/Parking Lot
Brand Name: KuWFi
Certification: NONE
Choice: yes
Color: White
Feature 1: Rou-ter
Feature 10: Wireless bridge
Feature 11: Wi-fi rou-ter
Feature 12: Wi-fi bridge outdoor
Feature 13: 4g rou-ter
Feature 14: Access point wi-fi
Feature 15: Wi-fi 1km
Feature 16: Wireless rou-ter
Feature 17: Wireless ethernet bridge
Feature 18: Wi-fi range extender
Feature 19: Cpe outdoor 5ghz
Feature 2: Wi-fi repeater
Feature 20: Wi fi repeater
Feature 21: Wi-fi repeater outdoor
Feature 22: Cpe outdoor
Feature 23: Mesh wi-fi
Feature 24: Outdoor rou-ter
Feature 25: 300mbps Wi-fi Repeater
Feature 26: Wireless AP Rou-ter For IP Camera
Feature 27: Point to Point 2KM rou-ters
Feature 28: 300mbps wireless cpe rou-ter
Feature 29: Wireless repeater
Feature 3: Wi-fi bridge
Feature 30: Wireless outdoor waterproof rou-ter
Feature 31: Long range wireless bridge
Feature 32: 2pcs wireless cpe rou-ter kit
Feature 33: Wi-fi outdoor repeater
Feature 34: Repeater rou-ter
Feature 35: Repeater outdoor
Feature 36: Wireless Bridge Point to Point 1km
Feature 37: Point to point wireless bridge
Feature 38: Ethernet bridge
Feature 39: Outdoor wireless access point
Feature 4: Repeater wi-fi
Feature 40: Wi-fi extender
Feature 41: Wi-fi antenna
Feature 42: 2KM Outdoor CPE Rou-ter
Feature 5: Wi-fi rou-ter
Feature 6: Rou-ter wi-fi
Feature 7: Wi fi rou-ter
Feature 8: Kuwfi
Feature 9: Outdoor wi-fi
Frequency: 2.4 GHz
Frequency Band Class: Single-Band
Function: VPN
High-concerned chemical: None
LAN Ports: 1
Max. LAN Data Rate: 300Mbps
Number of USB Interfaces: None
Origin: Mainland China
Package: Yes
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11g
Support Mesh: Not Supported
Supports WDS: Yes
Supports WPS: Yes
Telecomcableconnected: Yes
Type: WireLess
WAN Ports: 1 x10/100Mbps
Wi-Fi Supported Frequency: 2.4G
Wi-Fi Transmission Standard: 802.11n
Wired Transfer Rate: None
Wireless Communication Standard: 802.11.n
Wireless transmission rate: 300m
With Modem Function: No
semi_Choice: yes
Please noted:
Please select the correct plug type.
1.1KM distance,it mean point to point,
2.if you want to reach long distance and better signal ,we suggest that you buy 2pcs
3.Wifi signal is affected by many factors,such as trees, walls, buildings, trucks, etc., raw network signals, etc
4.if you buy one pcs ,it does not have package box,please do not worry damaged in transit,we pack it very well
Please open this link to check how to use it ,thanks!
https://www.youtube.com/watch?v=9ybv0Zie-FY&t=230s
Product Description:
1KM Outdoor Wifi bridge Router 1KM Point-to-Point Wireless CPE Bridge Router Wifi Repeater Support Wireless AP For IP Camera
1.CPE120 is an very cheap 300Mbps outdoor ethernet bridge with LED display to configure the PT/PTMP connection show operation mode, channel, signal strength and CPE name(H or C) no need to access into GUI, avoid the complex setup program,
2.outdoor wireless access point make the long range wireless coverage, data transmit and wireless monitoring simple and professional
3.300Mbps wireless speed ensures high speed internet access and more end users access.suitable for long range video transmission point to point 1Km Pre-program mode ,
4.No need seting , it can work two unit at the same time , no need long cable for connect to camera with your PC .Very simple installation, wireless outdoor cpe kit CPE120 with Pre-configured, ready to install. with smart web management, it can be pairing automatically.
5.effective solution for PTP, PTMP application and outdoor long range wifi coverage and Easy to set CPE with IP camera(cameras) and networks DVRalso support long range wifi cover .
6.300mbps wireless Bridge Waterproof, dust proof, lighting protection. Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃ equipped 2 *10/100M LAN ports, 2 times Ethernet data rate faster than normal CPE ,Wireless AP, Repeater operation mode
Product Detail
Comply with: IEEE 802.11ac/a standard, 2.4G 300Mbps Data Rate
1*10/100Mbps WAN Port,1*10/100Mbps LAN Port
FLASH * DDR2:FLASH 8MB * DDR2 64MB
Build-in 8dBi panel antenna, stronger signal strength, more wireless coverage
WAN Port support passive PoE
Support SSID broadcasting, Multi SSID up to 4
Working mode: Wireless AP, Repeater operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃

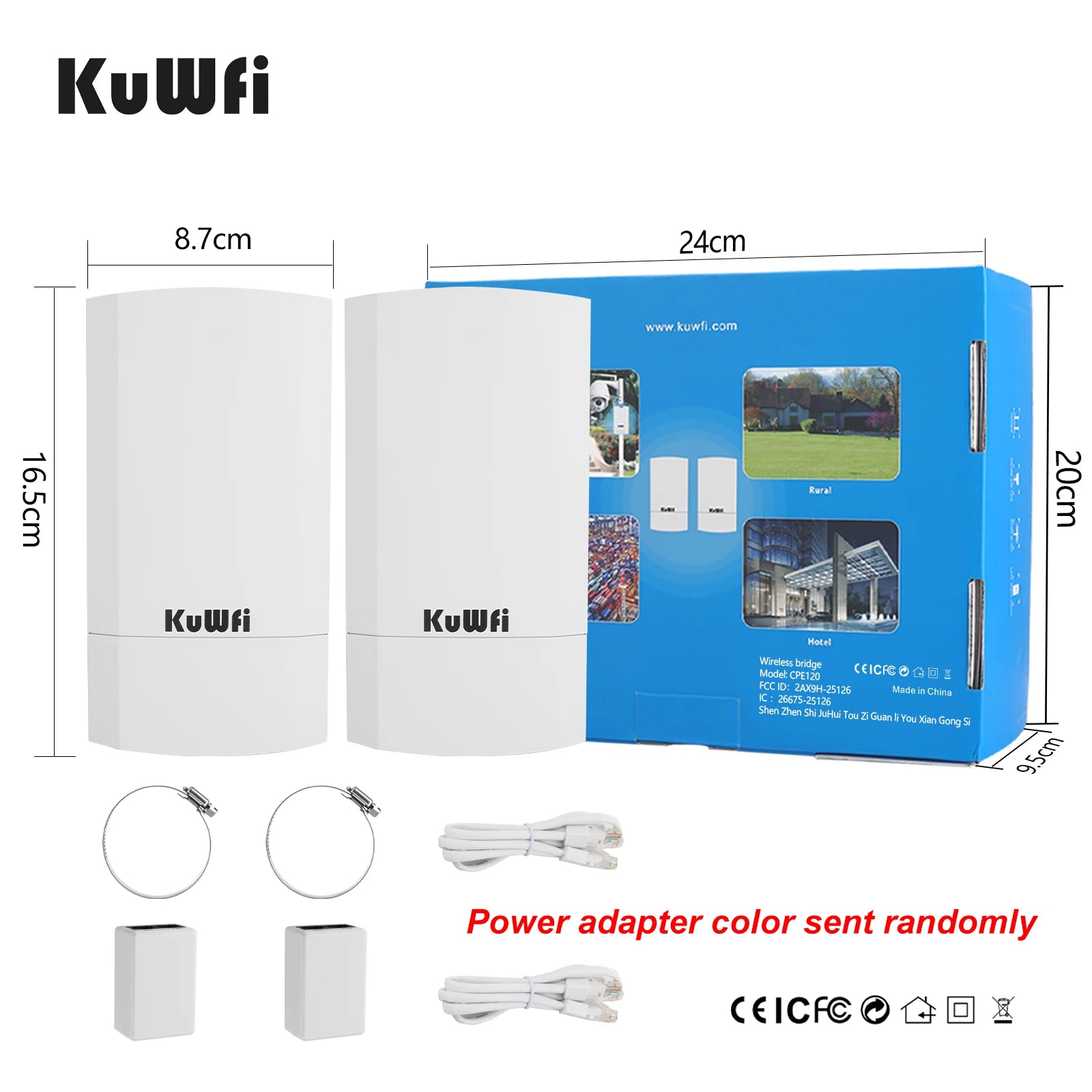

Package Listing
CPE120- 2pcs
POE Power Adapter (24V0.5A) - 2pcs
Quick Start Guide - 1pcs
Ethernet Cable (1meter) - 2pcs
Metal Hoop with Screwing Fastening - 4pcs
Applications Case
I was looking for a wireless bridge to bring internet connection to my backhouse about 500 feet from the main house, which is too far for wifi range and too long to run the ethernet cable. I connected the adapter to the bridge using the ethernet cable on one end and the other end of the ethernet cable to the main house internet hub. I connected the other adapter to the other bridge using another ethernet cable for the backhouse. I like that the bridges can go very far, up to almost a mile without obstruction, which is ample for my need. Will look to see if the bridge can be connected wirelessly to the hub in the main house.
Shipping time and tracking
We use safe trackable shipping methods to ship parcels ,below is estimated delivery time for different countries :
Asian countries 7-10 days .
European countries 7-15 days .
United States 10-15 days .
American countries 15-25 days .
Brazil 15-45 days .
Warranty time and service
Customer service working hours:Beijing 9:30-18:30
Ship orders within 48 hours (except weekends)
The warranty period of the router is 1 year.
