SPECIFICATIONS

Alarm Output: NC/NO 3A/220V

Alarm Type: Used with the alarm panel

Alarm time: 2s/30s/1min/5min

App Support: Not applicable

Brand Name: SICUREZZA

Detecting range: 12m*12m 100 Degrees

Detection Range: Up To 10 m

Feature: Alarm

Item: Wired Burglar Alarm 12v PIR Motion Sensor

Material: Plastic

Model Number: HS-209P

Mounting height: 1.5m--2.4m

Network: wired

Pet immunity: 25Kg max

Place of Origin: Guangdong, China

Sensor Type: Motion Sensor

Size: 116*64*48mm

Usage: Alarm

Working current: 15mA(Stand by)

Working voltage: 12v to 24v DC

Product Paramenters

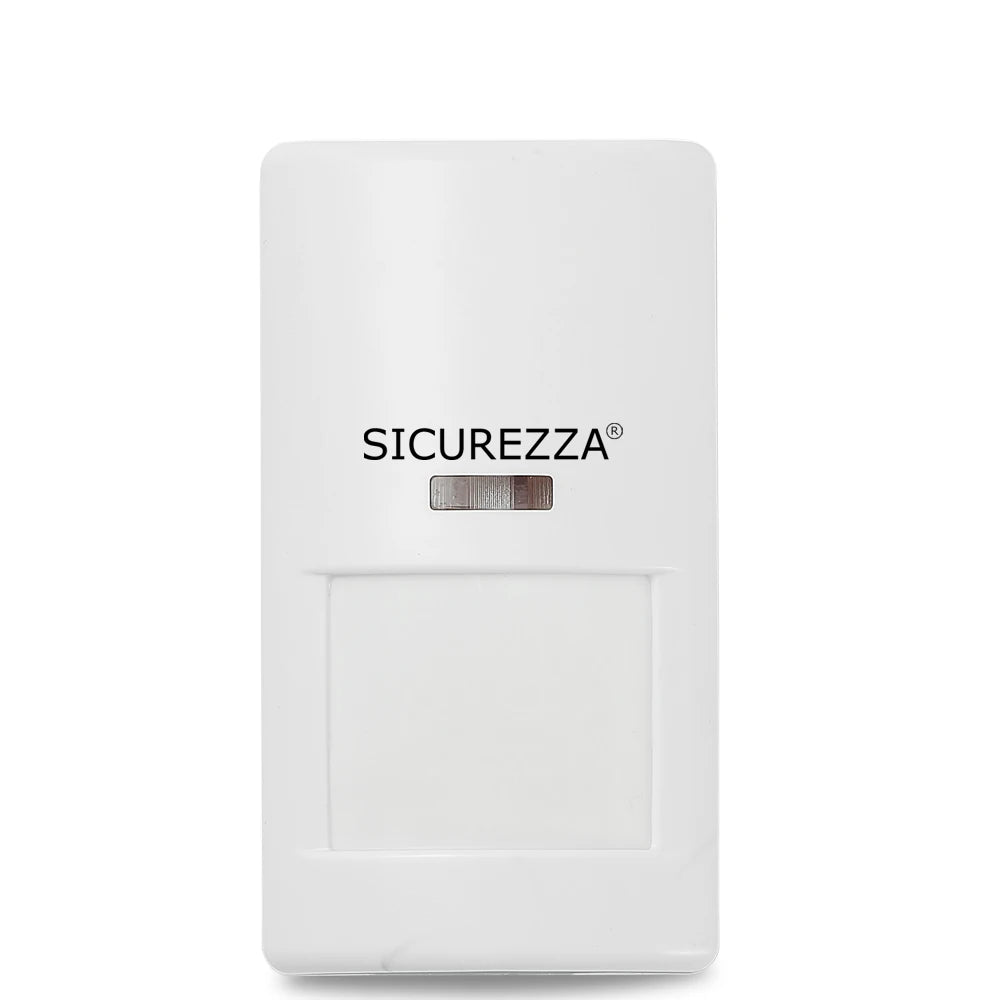

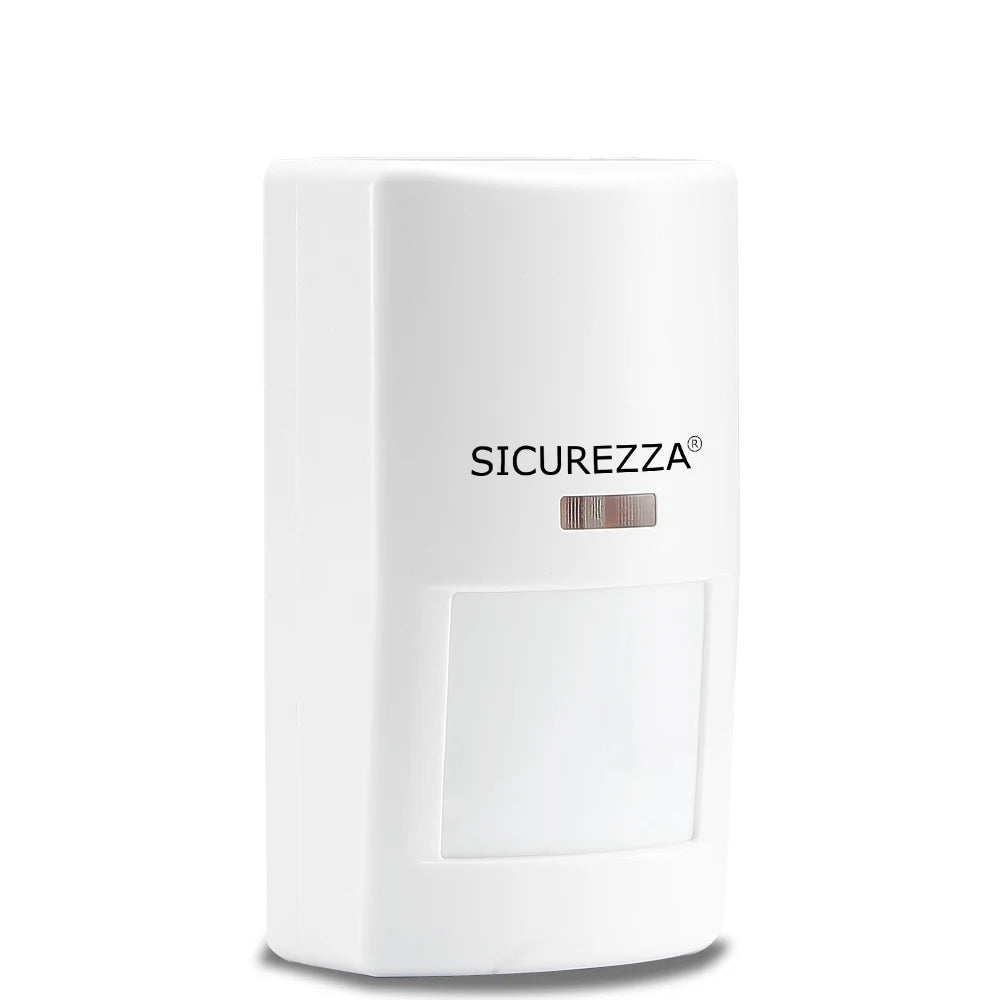

Indoor PIR Sensor DC 9-12V Wired Burglar Alarm Passive Infrared Motion Detector 12v PIR Motion Sensor

This is a three-dimensional spatial passive infrared detector, by a two-element passive infrared sensor with advanced control and processing circuit technology to optimize the signal detected by the sensor. It has very low leakage alarm and false alarm, and adopts bidirectional temperature compensation technology to complete intrusion motion detection in a wide temperature range. Also adopted a unique pet weight, size calculation method, pet protection level up to 20 kg. In addition, the thermal airflow resistance, curtain swing and other false moving objects also have good performance, its performance and stability far beyond the market at the same price of infrared detectors. At the same time, the detector also provides the installation user with NO/NC output selection mode, which can be directly used to activate THE CCTV system and access control system. The detector can be used in a variety of indoor situations, such as warehouses, hotel rooms, offices, etc.

- Dual passive infrared detection technology - Adopt intelligent processing technology - sensitivity adjustable - Two anti-pet levels are adjustable - Alarm output NO/NC Optional - Complete SMT parts design - Output hold time four options - Unique full range temperature compensation - Protection against strong EMI - Anti white light interference - Anti-pet rating: 25 kg - Fully sealed optical fittings - Detection range: 100 degree 12 meters

Specification for 12v PIR Motion Sensor Alarm
Working voltage	DC 12v to 24v
Working current	15mA(Stand by)
Detection range	12m*12m 100°
Pet Immunity	25Kg max
lens for option	Wide Angle standard lens /Pet lens/ Curtain lens /Long lens (35m)
Installation height	1.5m-2.4m
Alarm Output	NC/NO Output ; 3A/220V
Tamper	200mA/125V
Alarm time	2s/30s/1min/5min
Compensation	Hyperbolic
Operation temperature	-10℃~+55℃
Operation humidity	95%(RH)
Anti white light	>10000LUX
Detection speed	0.2m/s to 3.5m/s
Anti RFI/EMI	0.1-500MHz/3V/m
Mounting way	Wall mounted
Installation Place	Indoor
Size	116*64*48mm

Packing & Delivery

Packing Details for 12v PIR Motion Sensor Alarm
PACKING	Neutral color box or customer's packing
PCS/CARTON	100PCS
GW/CARTON	18.0KG
CARTON SIZE	54*45*34CM

Products Description

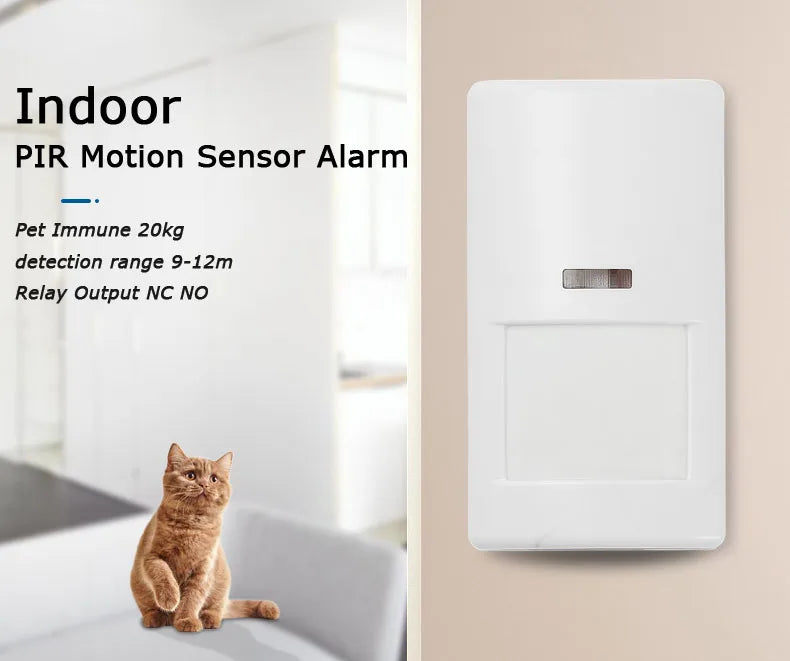

Indoor PIR Motion Sensor Alarm

Pet immune 20kg / 9-12 meters detection renge / relay output NC/NO

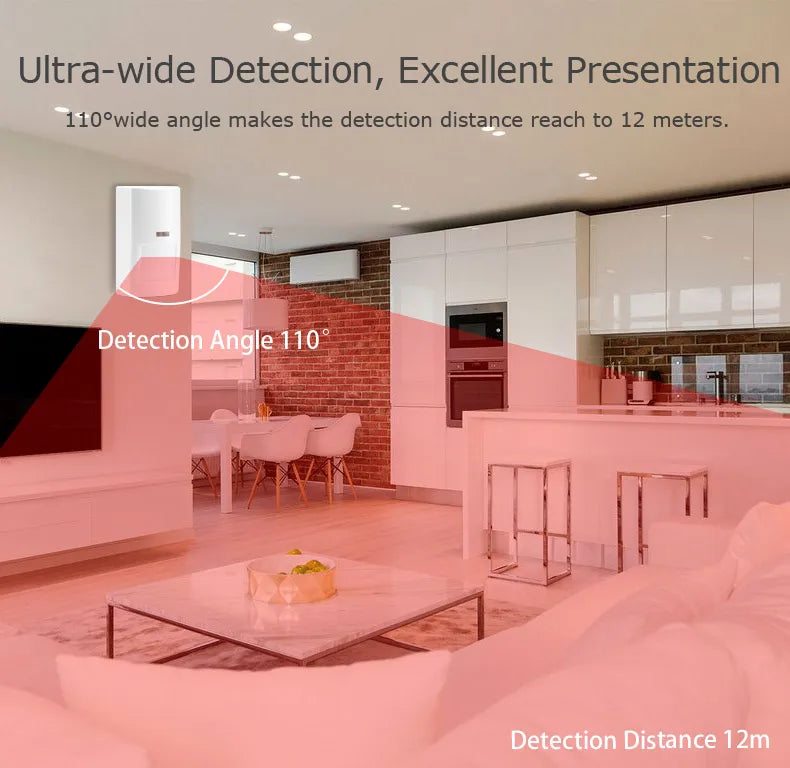

Detection Range 9 to 12 Meters

110 degree wide angle makes the detectioin range reach to 12 meters.

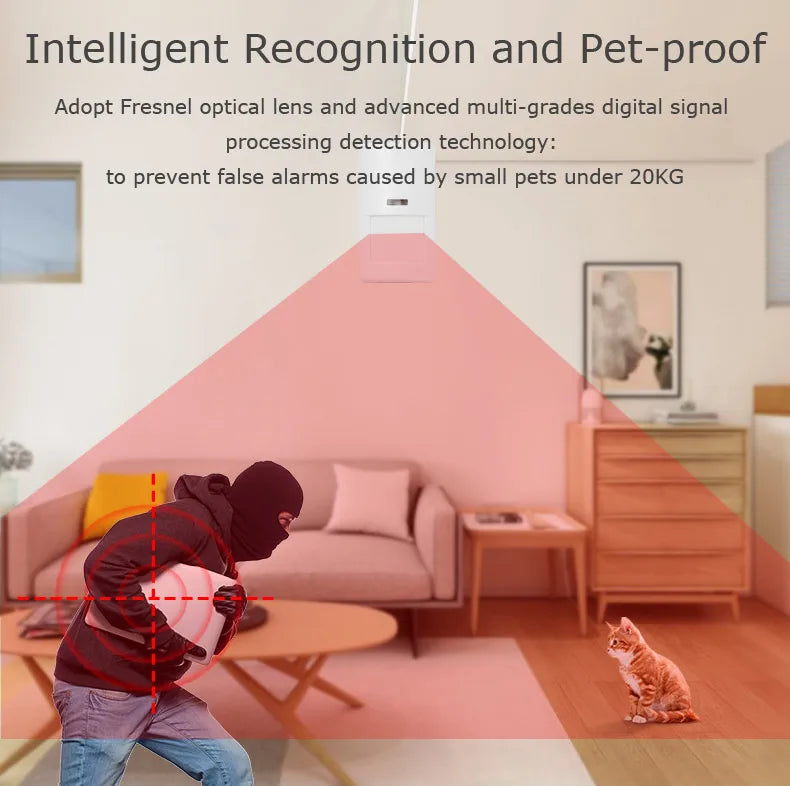

Intelligent Recognition and Pet Immune

Adopt Fresnel optical lens and advanced multi-grades digital signal processing detection technology: to prevent false alarms caused by small pets under 20KG
