SPECIFICATIONS

Alarm Type: Used with the alarm panel

App Support: Wireless 433mhz

Brand Name: SICUREZZA

Detection Range: Up To 10 m

Detection range: wide angle 110 degree 12m*12m

Feature: alarm

Item: Outdoor Wireless 433mhz PIR Motion Sensor With Solar Powered

Material: Plastic

Model Number: HS-236P

Network: 433mhz

Pet immune: 15kg

Place of Origin: Guangdong, China

Power supply: Solar Charging/USB 5V power supply

Sensor Type: Motion Sensor

Size: 148*75*54mm

Waterproof grade: IP65

Wireless frequency: 433mhz / EV1527

Wireless transmission distance: ≥200m (open space)

Working current: Standby≤26uA ;Alarm≤18mA

built-in battery: 4.2V A Lithium battery

Product Paramenters

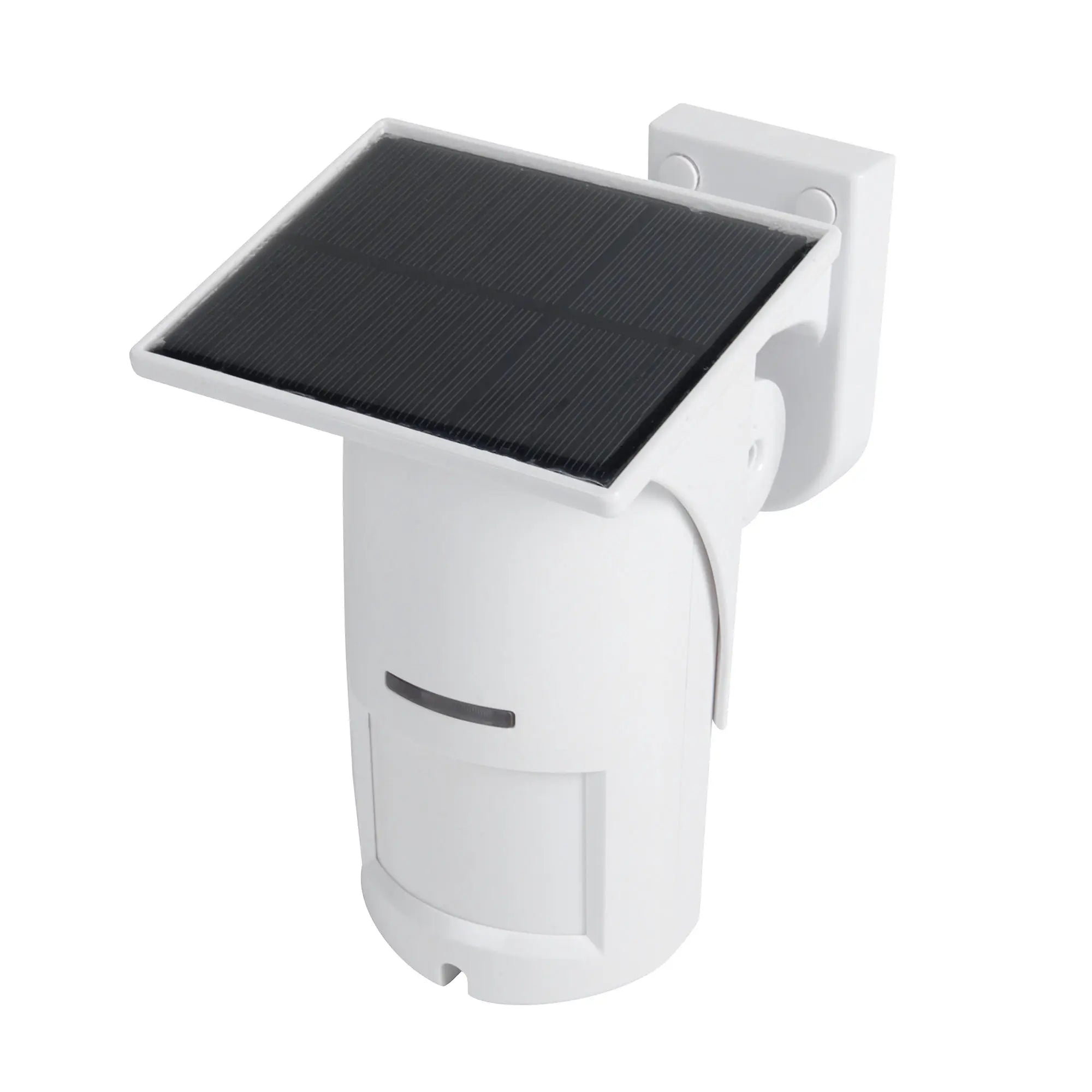

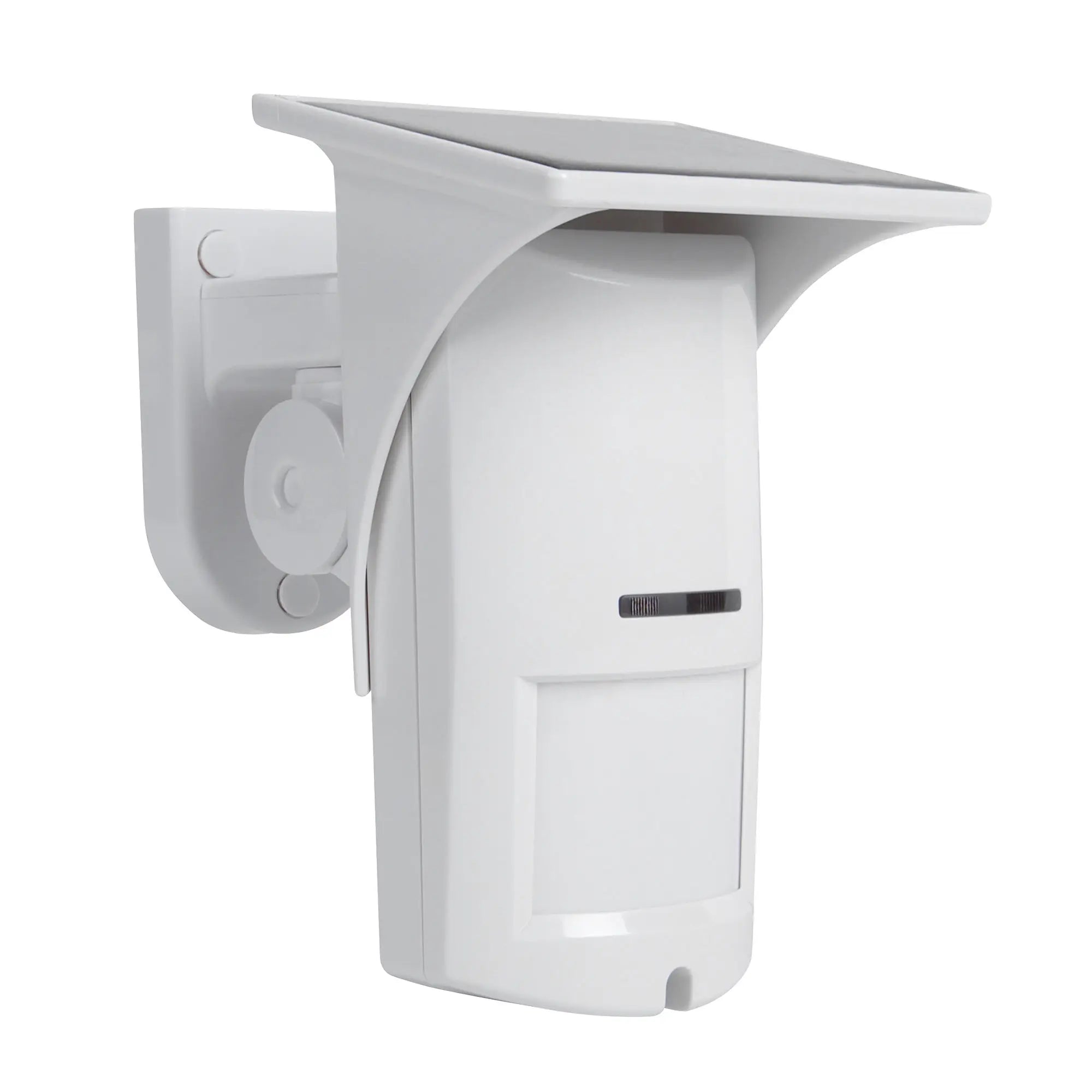

Factory Direct Wholesale Home Security Long Distance Wireless Infrared PIR Motion Sensor Detector

This is a good performance with solar energy charging technology for outdoor digital wireless motion PIR detector with remarkable functions, it can avoid outdoor inter fer enc e from sunshi ne, UV & RF, head light on car etc and is highly effective for water/dust/insects/ wind proof. It is matched with follow advanced technology: direct calculation an d analysis technology from intelligent hi gh-spe ed microchip to intrusion infrared signal, double polarity test technology, automatic temperature compensation technology, direct adjustment technology to sensitivity on digital signal, filtering technology from multi-layer infrared channels to mixed light. Its particular calculation on pets chargeable data can avoid false alarm caused by 20kg small animals eff ective ly. At the same time, it is also outstanding in anti hot air, waving curtains etc, can offer forced test on the base of 4-grade sensitivities. Built-in high-performance lithium-ion rechargeable battery. In a word, this detector is advanced and stable enough to off er best

-Super mini power-consumption solution

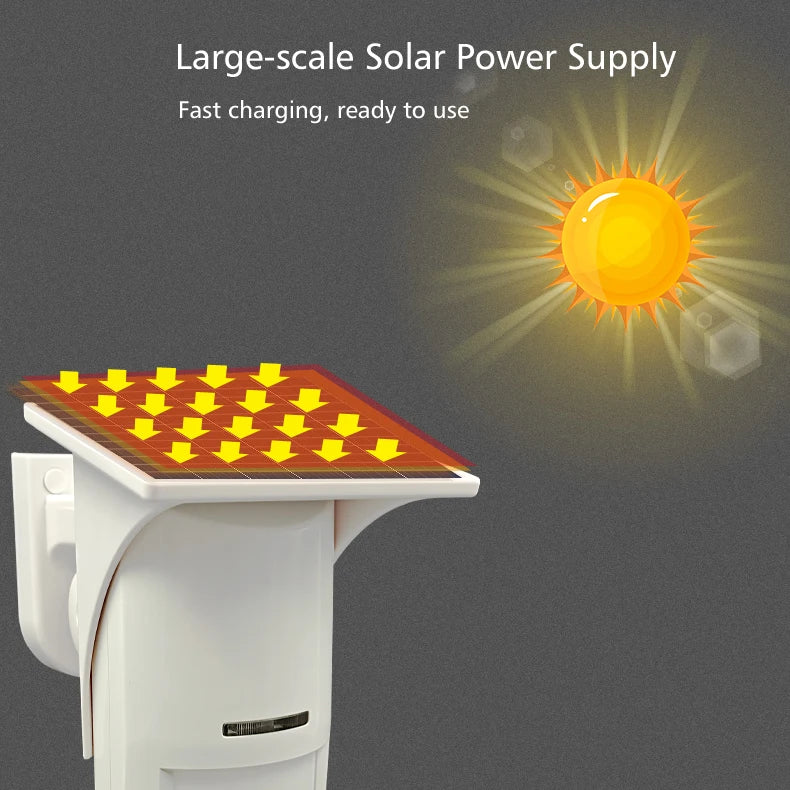

-Polysilicon solar charging technology
-High-quality large-capacity lithium battery
-2 grade sensitivities for option
-2 grade pulses for option
-Digital pet immunity up to 15kg
-Bi-directional temperature compensation
-EDS/electric shock proof/mobile interference proof
-Anti white light
-Low voltage alarm
-Fully sealed optical parts

-Multi-direction bracket fit for corner/wall/ceiling mount

Specification for 433 mhz Wireless PIR Motion Sensor Alarm
Power supply	Solar Charging/USB 5V power supply
Built-in battery	4.2V Lithium Battery Operated
Standby Current	26uA
Alarm Current	18mA
Detecting range	wide angle 110 degree 12m*12m
Pet Immune	15kg
Installation height	1.8~2.4m
Detection speed	0.2-3.5 m/s
Sensitivity	4 grade for option
Alarm time	2s
Alarm interval	4 min (USE mode)
Wireless distance	≥200m (open space)
Anti white light	>10000 LUX
Fire proof	ABS plastic
Anti RFI/EMI interference	0.1-1000MHz/30V/m
Operation environment:	-10℃-50℃
Wireless protocol	EV1527 ( Other wireless protocols can be customized)
Wireless frequency	433MHz
Application	Outdoor
Waterproof grade	IP65
Mounting	Wall mounted
Size	170145110mm

Packing & Delivery

Packing Details for 433 mhz Wireless PIR Motion Sensor Alarm
PACKING	Neutral color box or customer's packing
PCS/CARTON	20PCS
GW/CARTON	11KG
CARTON SIZE	373662CM
