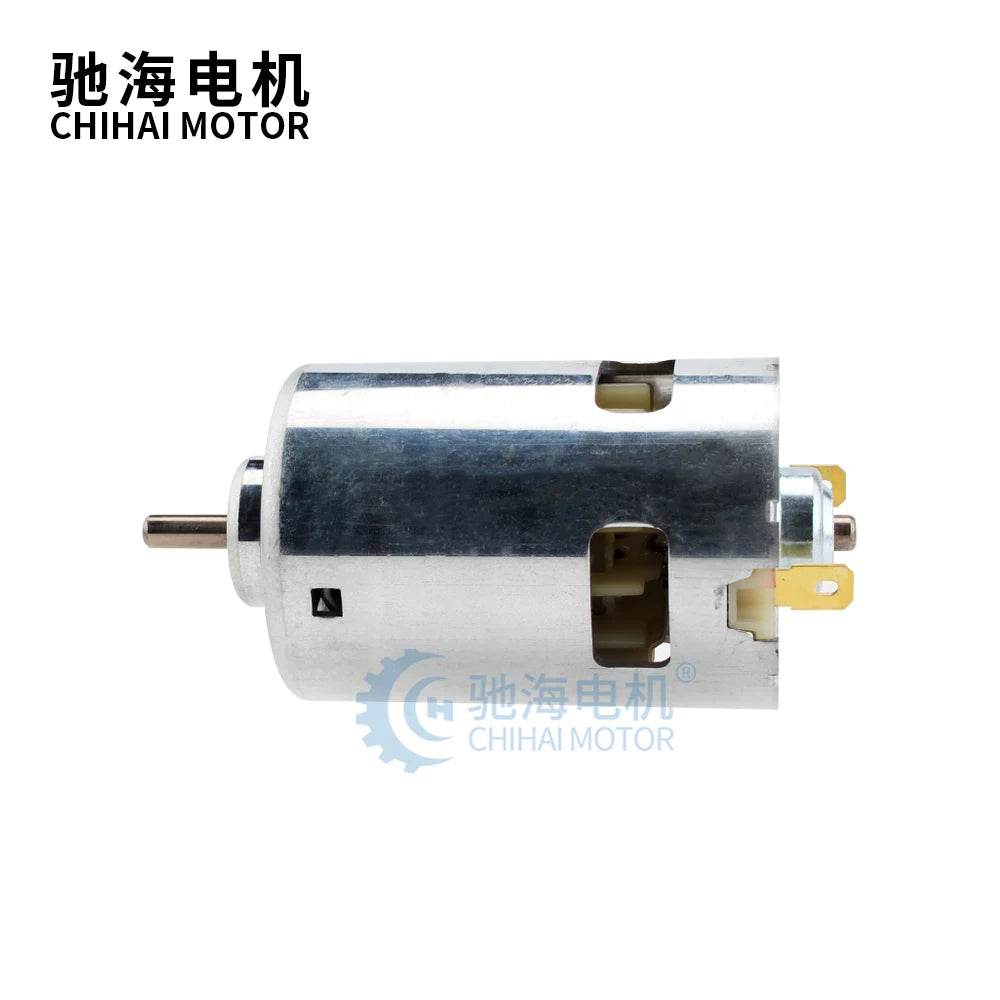

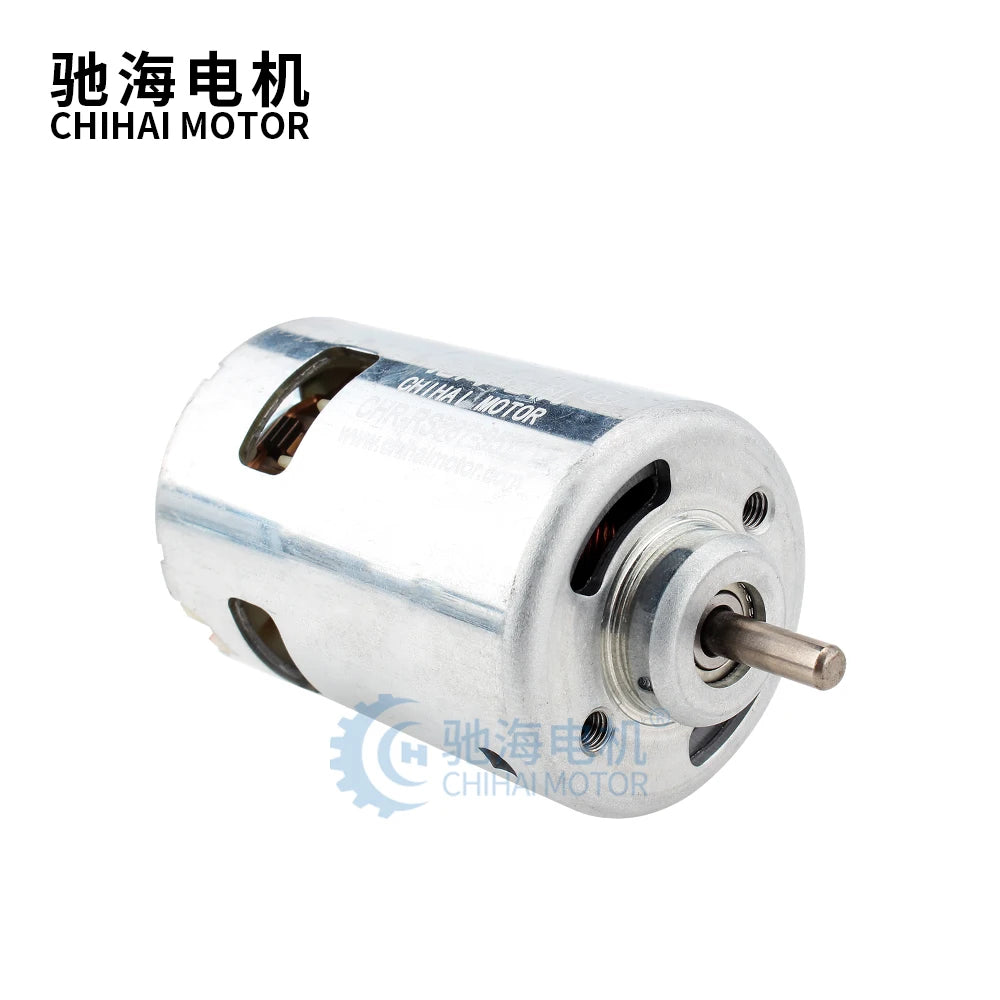

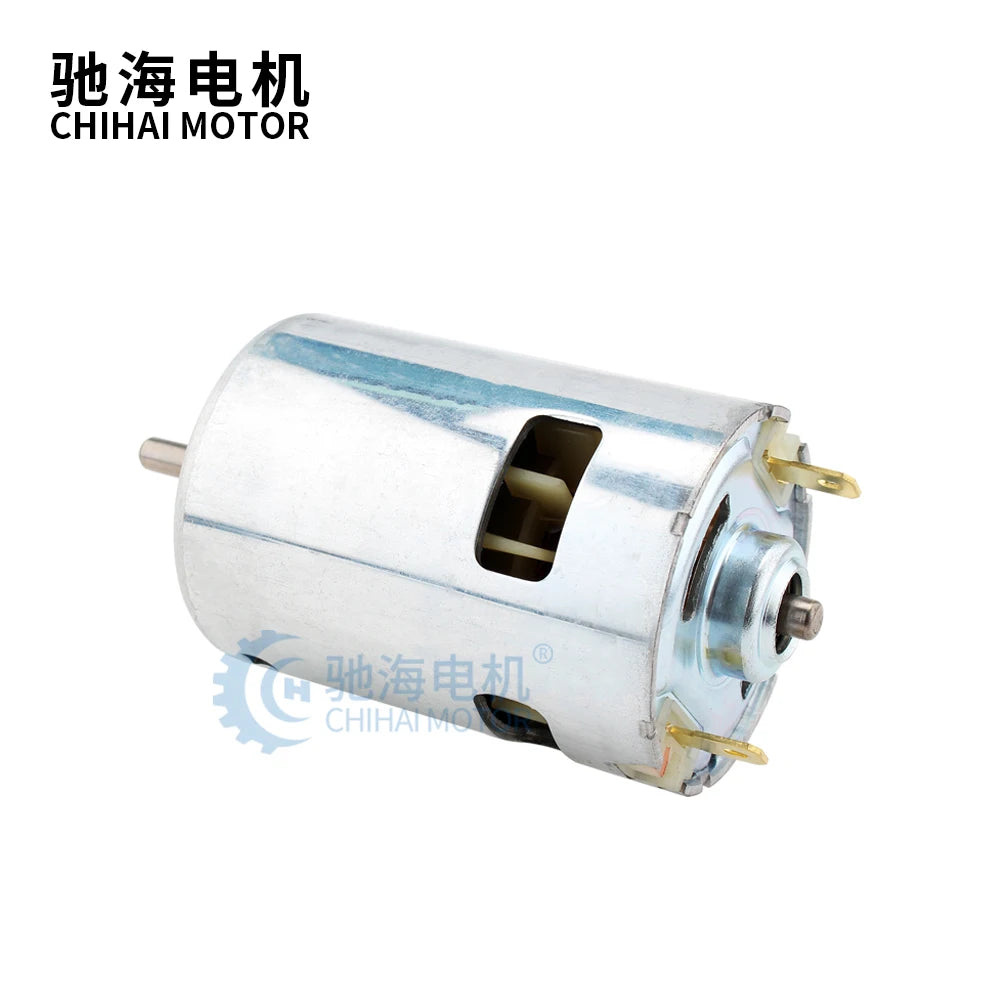

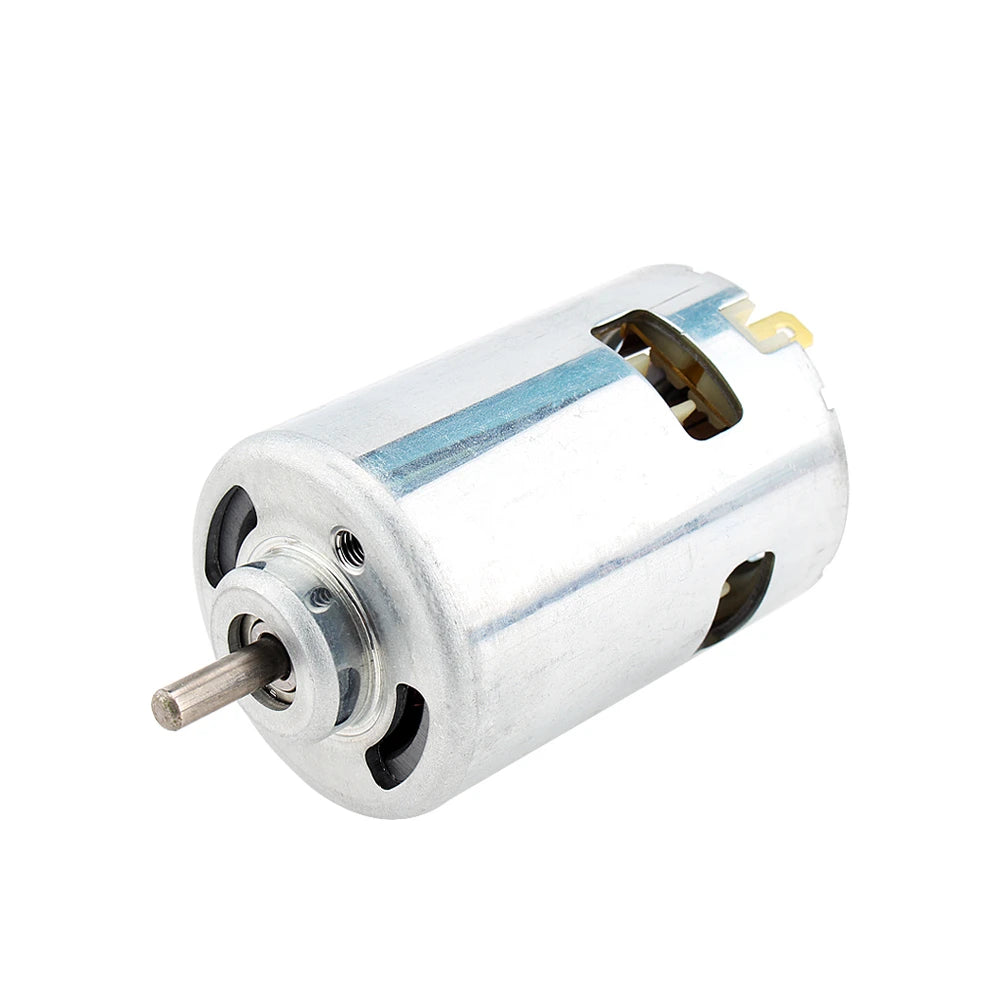

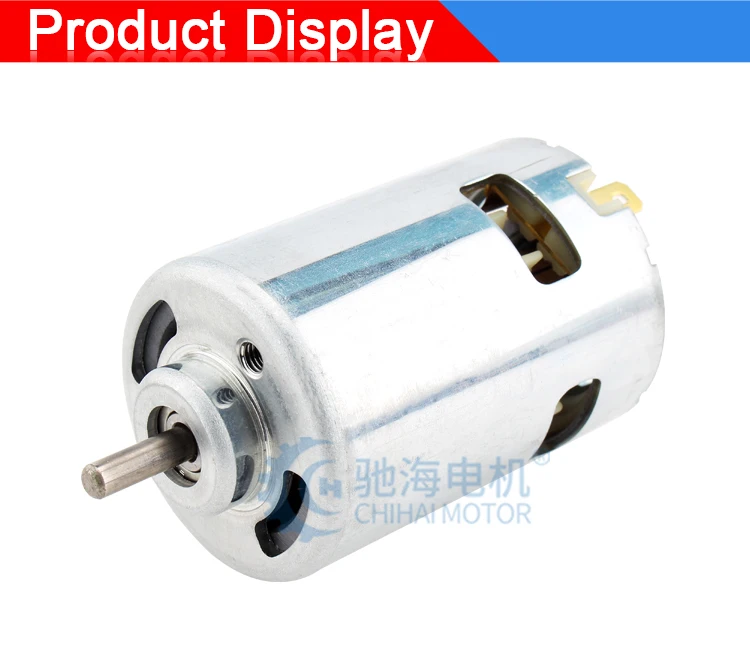

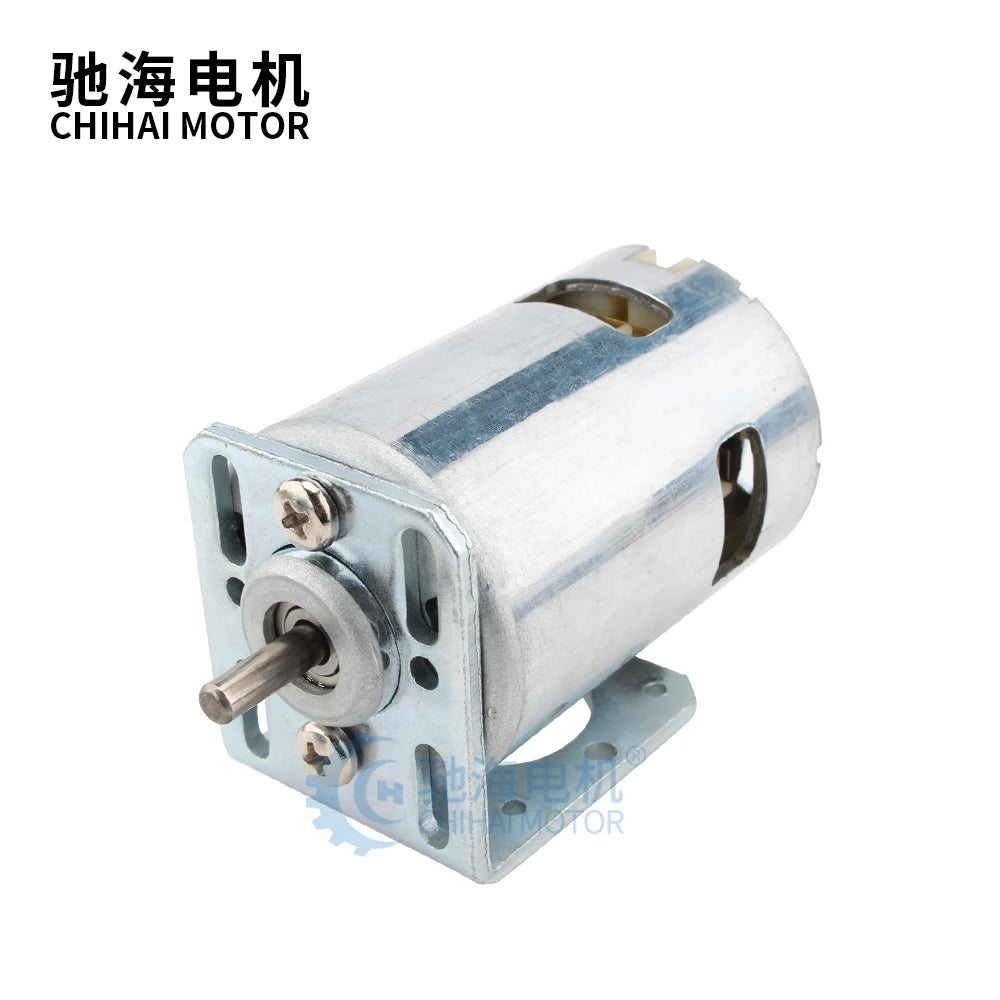

Chihai CHR-RS-887-9512T Carbon Brush Dc Motor 18v 1100w 887 for Fighting Robot,air Purification Power System, Medical Equipment
Chihai CHR-RS-887-9512T Carbon Brush Dc Motor 18v 1100w 887 for Fighting Robot,air Purification Power System, Medical Equipment
SPECIFICATIONS
Application: fighting robot
Brand Name: chihai
Color: silver
Commutation: Brush

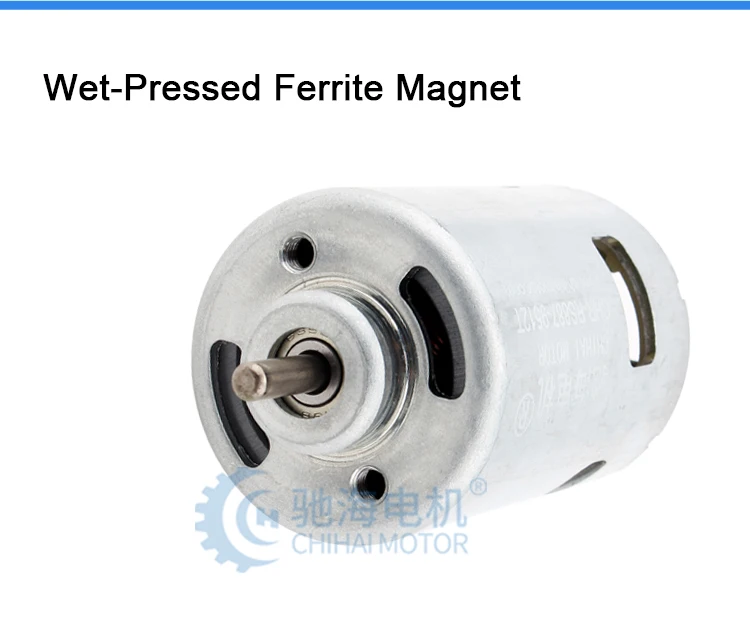

Construction: Permanent Magnet
Continuous Current(A): 4.5A
Efficiency: IE 2
Frame: ~
Keywords: High speed dc Motor
Model Number: CHR-RS-887-9512T

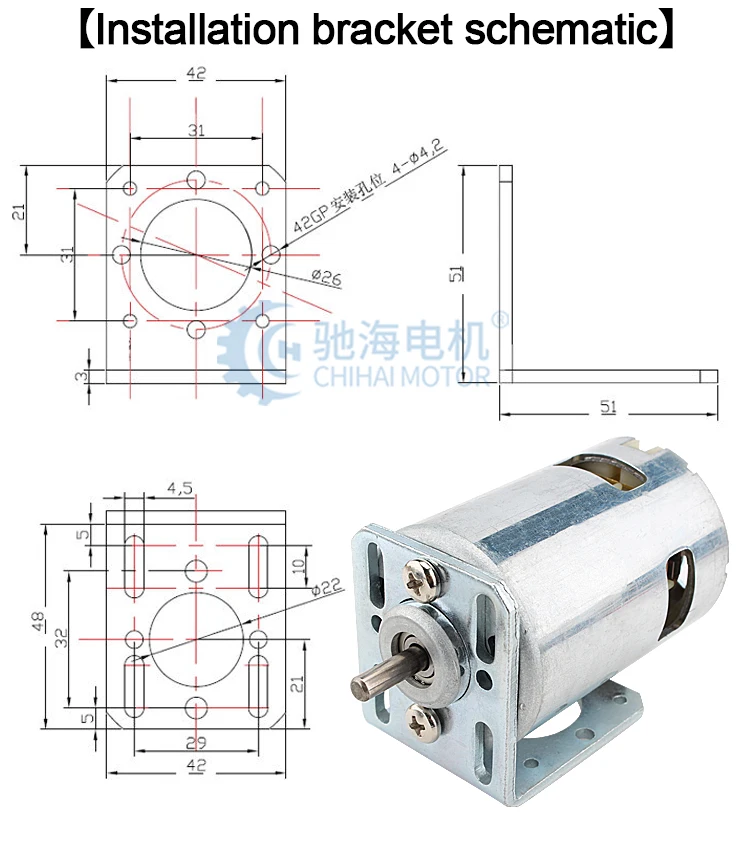

Motor Mounting Type: Flange Mount
Motor type: dc motor
Place of Origin: Guangdong, China
Product Name: Carbon brush dc motor
Rated Power: ~
Rated voltage: 18V
Speed Rpm: 23500rpm
Speed(RPM): 23500rpm
Torque: 1900mN.m
Usage: Electric Bicycle,Home Appliance,fighting robot
Warranty: Other

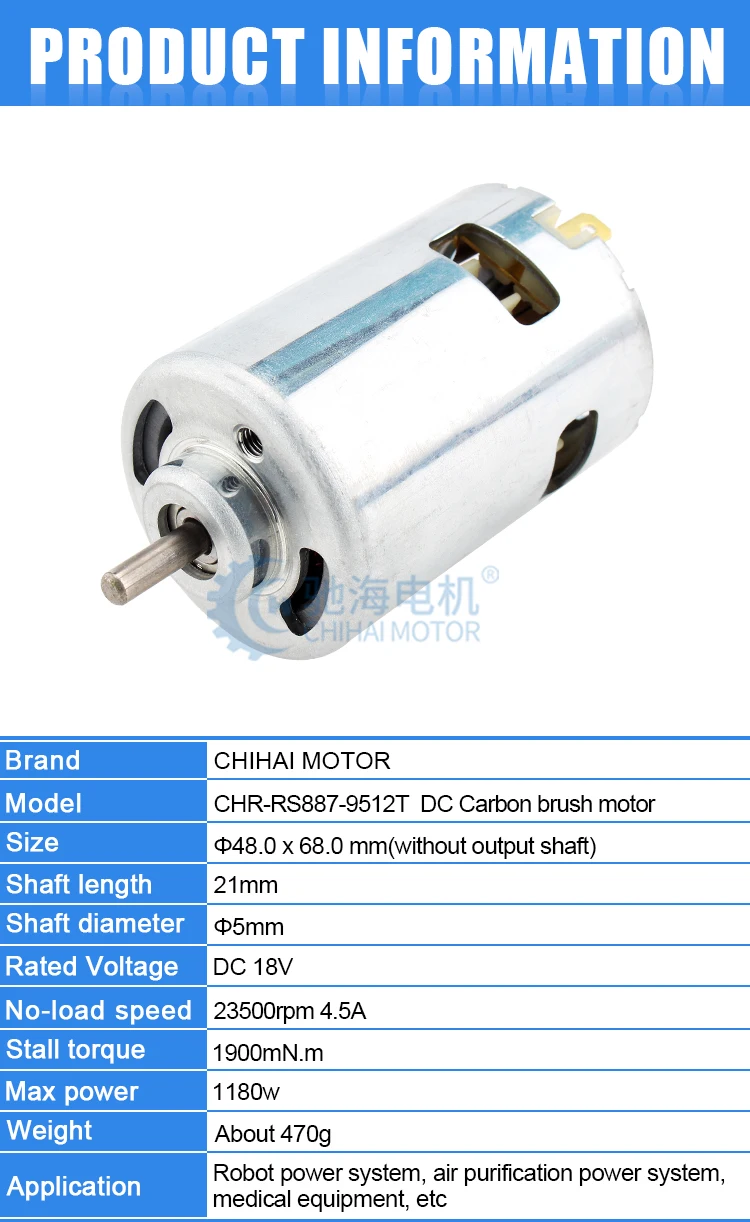

Product Type: |
CHR-RS-887-9512T Carbon brush dc motor |
||||||

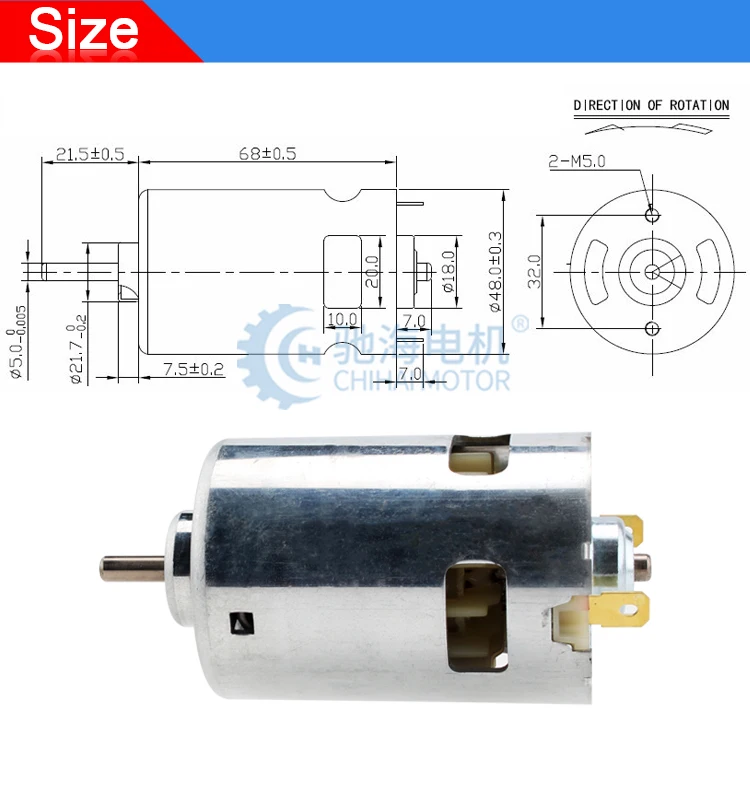

Size: |
Φ48.0 x 68.0 mm(without output shaft) |
||||||
Shaft diameter: |
5mm |
||||||
Shaft length: |
21mm |
||||||
Rated Voltage : |
DC 18V |
||||||
No-load speed: |
23500rpm 4.5A |
||||||
Stall torque: |
1900mN.m |
||||||
Max power: |
1180w |
||||||
Weight: |
About 470g |
||||||
application: |
Robot power system, air purification power system, medical equipment, etc |
||||||
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
